Produktdetails:
Zahlung und Versand AGB:
|
Galvanisations-Standard: | ASTM A 123 | Oberflächentechnik: | Heißes Bad galvanisiert |
---|---|---|---|
Bemessungslast in Kilogramm: | 300~1000kg applicated bis 50cm vom Spitzenpfosten | Windgeschwindigkeit: | 160km/h, 30m/s |
Klage für: | Stromverteilung | Schweißender Standard: | AWS D 1,1 |
Markieren: | electric power pole,steel power pole |

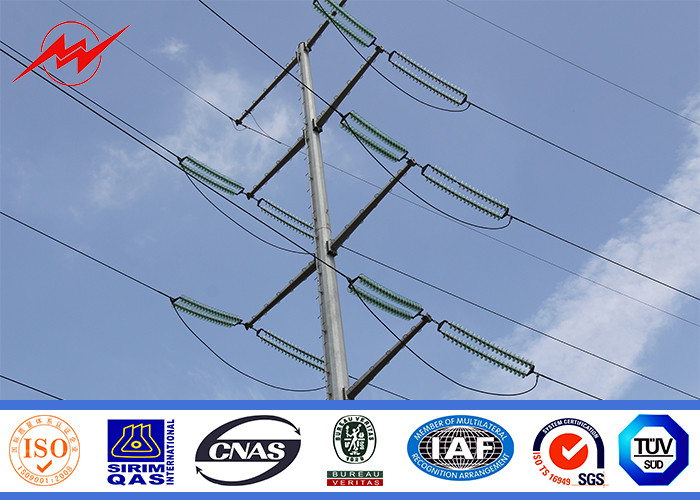

12m 1000dan Bitumen Electrical Power Pole for Transmission Line
Mounting Height: |
3-30m or according to the requirements of customers |
Shape of pole: |
Round,conical,octagonal,square,mid hinged,polygonal shafts are made of steel sheet that folded into required shape and welded longitudinally by automaticarc welding machine
|
Brackets: |
Single or double brackets are in the shape and dimension as per customers requirement |
Base plate: |
Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement
|
Groung mounted: |
The length buried underground as per customers requirement
|
Galvanizing:
|
Hot dip galvanization with thickness of 80-100µm average
|
Powder coating: |
Pure polyester powder painting, color is optional |
Detailed Product Description:
Satisfactory after-sales service
Professional technical team .
First-class leadership team.

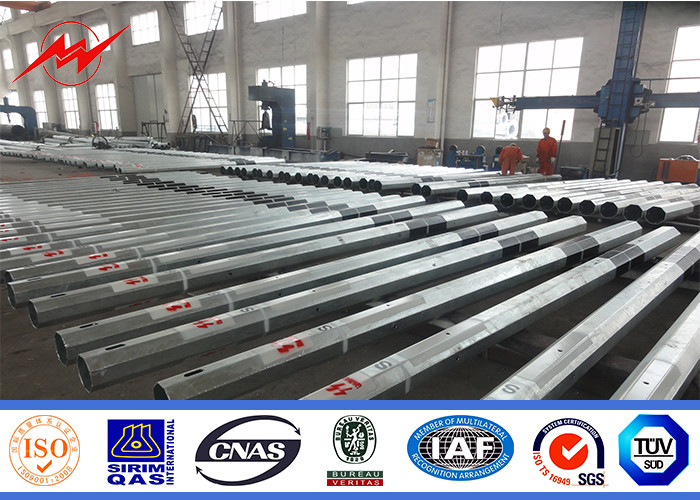

The power pole of our company are made from quality sheets through bending,forming, automatic welding, hot dip galvanization and powder coating. We owned advanced production-line, it included Flatting machine, Steel plate shearer, bending machine,Auto-closed up machine, submerged arc welding machine and powder coating line, and our workmanship and quality control was achieved high opinion from our clients.
Features:
1) Designed or improved for various kinds of power pole.
2) Material: Hot rolled steel(Q235,Q345,Q450).
3) Appearance:Hot dip galvanized or spray plastic or others(up to customer’s request).
4)Packing: Woven bag, Plastic bulble paper or Black blanket or others.
5) Shape: Octagonal, Polygonal or Tapered round.
6) Length: up to customer' request.
7) Thickness of bending plate: 2.5mm - 20mm.
8) welding:automatic.
9)Other features: Short construction cycle, less land occupation, low overall cost and easy maintenance.
Our Company:
Estbilsed in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on
We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on
