Customizable Steel Power Pole with Gr65 Material and 460 MPa Yield Strength for Electric Distribution

1 PCs
MOQ
Verhandelbar
Preis
Customizable Steel Power Pole with Gr65 Material and 460 MPa Yield Strength for Electric Distribution
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Produktname: Stahlstrommast
Anwendung: Leistungsverteilung
Material: Gr65
Minimale Streckgrenze: 460 MPa
Maximale Bruchfestigkeit: mpa 620
Wandstärke: 1mm-36mm
Hervorheben:

Gr65 Material Steel Power Pole

,

460 MPa Yield Strength Electric Distribution Pole

,

620 MPa Tensile Strength Galvanized Steel Pole
Grundinformation
Herkunftsort: CHINA
Markenname: MilkyWay
Zertifizierung: ISO9001/BV/
Modellnummer: Stahlstrommast
Zahlung und Versand AGB
Verpackung Informationen: als Kundenanfrage
Lieferzeit: 20 Arbeitstage nach Erhalt Ihrer Zahlung
Zahlungsbedingungen: T/t, l/c bei Sicht
Versorgungsmaterial-Fähigkeit: 300pcs pro Tag
Produkt-Beschreibung
Customizable Steel Power Pole for Electric Distribution

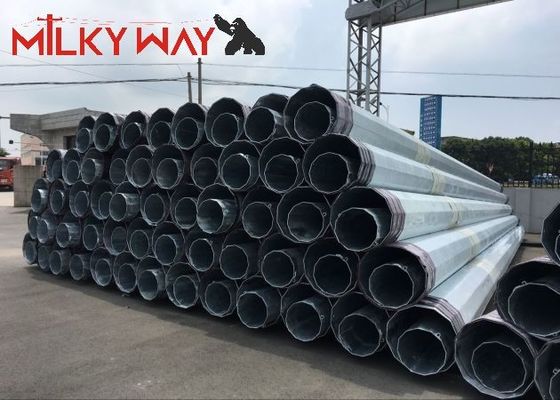

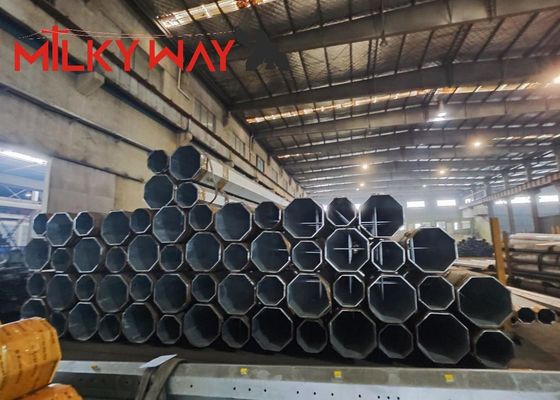

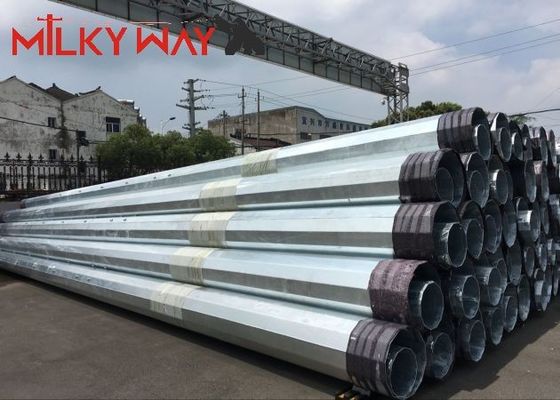

Hot dip galvanized steel power distribution poles available in lengths from 35FT to 70FT (10.7m to 21.35m).
Product Specifications
Types Length 45ft (13.75m) 50ft (15.25m) 55ft (16.80m) 60ft (18.30m) 65ft (19.85m) 70ft (21.35m)
B (0°-2°)
Top diameter (mm) 200 200 200 200 200 200
Butt diameter (mm) 345 370 395 415 435 455
Thickness (mm) 6 6 6 6 6 6
Material Description
  • Poles are manufactured by high-quality metal plants, molded into multi-row cone-shaped vertical steel bars with hot galvanized anti-corrosion treatment
  • Light plate frame is constructed from high-quality stainless steel
  • Fastened with stainless steel bolts and nuts
Customizable Steel Power Pole with Gr65 Material and 460 MPa Yield Strength for Electric Distribution 0
Our Services
Responsive Communication
Reply to your inquiry within 24 working hours with experienced staff answering all questions in fluent English.
Custom Solutions
Customized designs available (UEM&UBM welcome). Our professional engineers provide exclusive solutions.
Distributor Benefits
Special discounts and sales protection provided to our distributors.
Quality Assurance
20+ years manufacturing experience using superior materials and advanced technology for high-quality, stable products.
Sample Policy
Samples available within one week for large orders (shipping charges typically paid by customer and rebated with formal order).
Customizable Steel Power Pole with Gr65 Material and 460 MPa Yield Strength for Electric Distribution 1
Company Profile
Jiangsu Milky Way Steel Poles, established in 1991 and located in Wuxi near Shanghai Port, has 24 years experience producing various steel poles including transmission power poles, street light poles, and high mast poles.
Our products have been exported to over 70 countries including USA, Australia, Russia, Germany, Spain, Philippines, Malaysia, and Africa. We've supplied major projects worldwide including street light poles for Dubai Tower and high mast poles for the Sochi Winter Olympics.
Customizable Steel Power Pole with Gr65 Material and 460 MPa Yield Strength for Electric Distribution 2
