Name: 60FT 70FT Single or Double Crossarm Steel Power Pole with Customizable Dimensions
Brand: Jiangsu milky way steel poles co.,ltd
SKU: 60 Fuß 70 Fuß Single- oder Doppelkreuz -Stahl -Stahlpol mit anpassbaren Abmessungen
Price: 500.00 USD
Availability: InStock

60FT 70FT Single or Double Crossarm Steel Power Pole with Customizable Dimensions

Ein 40HQ

MOQ

Verhandelbar

Preis

Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat

Eigenschaften

Technische Daten

Toleranz des Maßes: + - 2%

Windwiderstand: 3 bis 500 km/h

Material: GR50 GR65 S500 S355

Höhe: 69 kV 16m

Schweißen: Schweißen bestätigt mit dem internationalen Schweißstandard von CWB

Pulverbeschichtung: Reines Polyesterpulver, Farbe ist optional

Design: gegen Grad 8 des Erdbebens

Produktname: 60 Fuß 70 Fuß Single- oder Doppelkreuz -Stahl -Stahlpol mit anpassbaren Abmessungen

Grundinformation

Herkunftsort: CHINA

Markenname: Milky Way

Zertifizierung: ISO//BV

Modellnummer: 60 Fuß 70 Fuß Single- oder Doppelkreuz -Stahl -Stahlpol mit anpassbaren Abmessungen

Zahlung und Versand AGB

Verpackung Informationen: Laut Kundenanfrage

Lieferzeit: normalerweise 2 Wochen nach der Bestätigung

Zahlungsbedingungen: T/t

Versorgungsmaterial-Fähigkeit: 300 Stücke Pfosten pro Tag

Galerie

60FT 70FT Single or Double Crossarm Steel Power Pole with Customizable Dimensions

Produkt-Beschreibung

Product Description

Features:

Pole’s height	All available
Type	Straight Pole ,Tensile Pole ,Turn Pole,etc
Shape of pole	Conical, Round, Polygonal---Octagonal, Dodecagonal, Hexadecagonal, etc
Crossarm	Single or double crossarm, dimension as per customers’ requirement
Material	Steel materials conform to ASTM A36, Q235 equivalent to SS400, S235JO. Q345 equivalent to S355JR,Grade 50 Q460 equivalent to S460, Grade 65
Wall thickness	≥2.5mm
Once forming	13m without joint
Welding	Welding complies with CSA and AWS, AWS D1.1 standard. The welders have got corresponding certificate after testing and inspection.
Joint	Joint with insert mode, flange mode.
Base plate mounted	Base plate is square or round with slotted holes for anchor bolt and dimension as per client’s requirement.
Galvanizing	Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 orAmerican standard ASTM A123.
Voltage	10KV~550KV
Certificates	ISO9001-2008 , AAA credit rating, etc
Protection	Anti-corrosion and rust free – suitable for coastal area, desert, oil field and industrial area

Specification

60FT 70FT Single or Double Crossarm Steel Power Pole with Customizable Dimensions 0

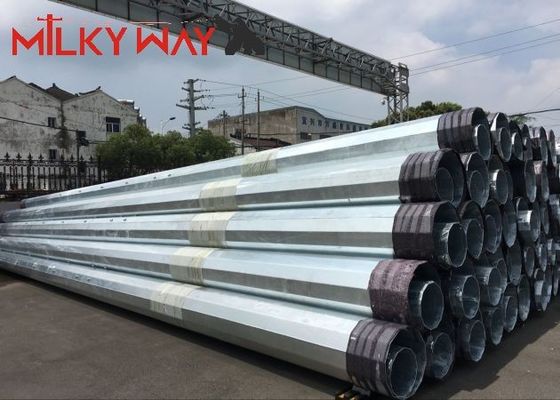

Packing & shipping

We use sack package the poles or straw at the pole top and bottom which is our normal package. We also use wood between the poles but cost just little higher than normal package. We normally use 40HQ container and our Port limit weight for 40HQ is 26Ton.

60FT 70FT Single or Double Crossarm Steel Power Pole with Customizable Dimensions 1

60FT 70FT Single or Double Crossarm Steel Power Pole with Customizable Dimensions 2
